Saint-roch Belgium Cast Iron Boilers

Meeting the needs of today’s environmental agenda, Saint Roch draws upon more than 100 years of knowledge and expertise of heating and combustion.

Saint Roch was founded in 1903 and started with the production of cast iron radiators and later with the production of cast iron boilers.

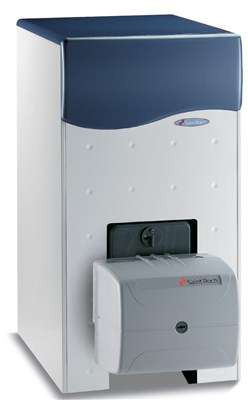

Saint Roch Melior Cast Iron Boilers. Assembled in Jordan

The Reference for medium power boiler



The SAINT-Roch MELIOR is a medium power boiler that can be equipped with a forced fuel oil or gas burner. It has a cast iron heating body with a very high resistance to the condensation and satisfies all individual, collective and industrial heating needs.



SOLID SAINT ROCH COUVIN QUALITY



The heating elements are engineered to ensure high efficiency and boiler-safety. The combustion chamber is well designed, ensuring full exposure to burner heat, preventing the formation of dangerous inner stresses and reducing consumption of fuel/gas, emissions.



WHEN THE SPACE IS PRECIOUS



PARTICULARLY Adapted for old buildings with difficult access or new apartment blocks. The SAINT-ROCH MELIOR is the best solution in term of compactness and making the installation in small spaces easier. The boiler is installed very quickly.



Easy Maintenance

The SAINT-ROCH MELIOR is designed with a hinged door the pivots left and right allowing complete access to the entire boiler body which makes cleaning the boiler such an easy task, Only horizontal cleaning is required.



Complete Equipment

A cast Iron heating body with assembled elements.

The control panel includes:

– Circuit for regulator

– ON/OFF switch

– Boiler Thermostat

– Boiler Thermometer

– Safety Thermostat

Pre-equipped housing for regulations

These boilers have the ability to add a cylinder that has a capacity of 100 liters to become part of the boiler inside a special jacket, so the boiler with the cylinder becomes suitable for the narrow places inside the boiler room and according to the need of the user.

SR4

Number of sections 4
Thermal output 34Kw
Efficiency at 100% output 90.3%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.06mbr
Load loss water side 0.8mbr
Water capacity 13.5L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 248 mm
Flue gas connection 125/130 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 131

SR5

Number of sections 5
Thermal output 45Kw
Efficiency at 100% output 90.3%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.08mbr
Load loss water side 1.3mbr
Water capacity 16.4L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 331 mm
Flue gas connection 125/130 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 154

SR6

Number of sections 6
Thermal output 56Kw
Efficiency at 100% output 90.2%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.12mbr
Load loss water side 2.3mbr
Water capacity 19.3L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 414 mm
Flue gas connection 125/130 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 180

SR7

Number of sections 7
Thermal output 65Kw
Efficiency at 100% output 90.4%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.2mbr
Load loss water side 3.9mbr
Water capacity 22.2L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 497 mm
Flue gas connection 150 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 205

SR8

Number of sections 8
Thermal output 74Kw
Efficiency at 100% output 90.4%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.27mbr
Load loss water side 5.7mbr
Water capacity 25.1L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 580 mm
Flue gas connection 150 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 228

SR9

Number of sections 9
Thermal output 183Kw
Efficiency at 100% output 90.2%
Efficiency at 30% output 91%
Flue gas temperature 230 °C
Load loss combustion circuit 0.35mbr
Load loss water side 7.7mbr
Water capacity 28L
Maximum operating pressure 4 Bar
Combustion chamber diameter 300*270 mm
Combustion chamber length 663 mm
Flue gas connection 150 mm
Burner connection 115 mm
Supply connection 1/4 1 G"
Return connection 1/4 1 G"
Drain connection 1/2 G"
Weight (estimated) 251
